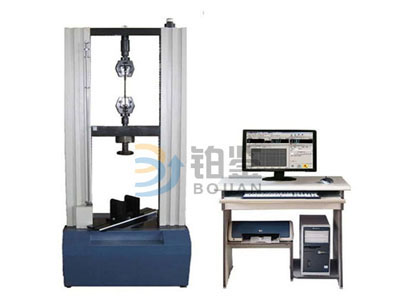

Product name：Door - type microcomputer controlled electronic universal testing machine.
Product model：
Product range：
Immediate consultation
Online Message
Microcomputer control electronic universal testing machine is mainly suitable for metal, nonmetal and composite materials tensile, compression, bending, shear, tear, peel, mechanical properties such as compressive strength, bending test.
The tester is made according to the standard of GB / T 16491-2008 electronic universal testing machine.
The test machine is checked and checked according to GB/T12160-2002's "uniaxial test extensometer" and GB/T16825-1997 "tensile testing machine".
1, style: double column gate
2, the test force is 100KN, which is 1, 2, 5, 10, four.
3, range: 2%-100%; (Universal), 0.5%-100% (Gao Pei).
4, accuracy of test force; + 1% (general matching); + 0.5% (Gao Pei).
5. The accuracy of the test force; 1N
6, test machine level: 1 level (general matching); 0.5 level (Gao Pei).
7. Displacement resolution: 0.01mm;
8. The accuracy of displacement measurement: 0.5%;
9, stretching stroke: 600mm (customized according to customer needs).
10, compression stroke: 600mm (customized according to customer needs).
11, displacement speed control range: 0.1mm/min to 300mm/min (general matching); 0.01mm/min to 300mm/min (Gao Pei).
12. The precision of the displacement speed control: 0.5%;
Size 13, test machine: About 780mm "560mm" 1850mm
14, microcomputer control electronic universal testing machine weight: about 500KG.
15, appearance: should meet the requirements of GB/T2611
16, complete set: meet the standard requirements
17, protection function: the tester has overload protection function.
18. Power supply: 220V, 50Hz
