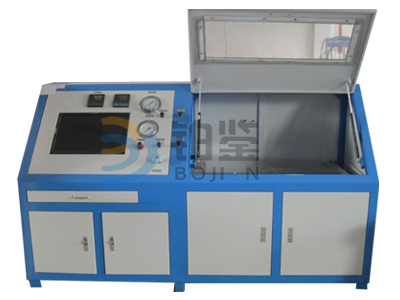

Product name：Rubber tube bursting test bed
Product model：
Product range：
Immediate consultation
Online Message
Hose blasting test stand is mainly testing pipe, PVC pipe, polyethylene PE water pipe polyethylene PE pipe, polypropylene PP pipe, aluminum-plastic composite PE - A1 - PE pipe, engineering plastic pipe, aluminum-plastic composite PAP pipe, crosslinked polyethylene PEX pipe, random copolymerization polypropylene pipe blasting test such as the PPR tubes.
1. Test pressure: 0~20MPa.
2. Pressure control precision: + 2% of test pressure value, and -1% of the lower limit.
3. Test medium: water.
4. Pressure control mode: computer control.
5. Operation mode: computer operation.
6. Sample quantity: 1. Control test pressure and test time.
7. Sample installation method: thread.
8. Structure: circulatory system, pressure control system, workpiece installation device, manual control.
9. Scope of application: hose.
1. Booster pump 1 electric booster pump.
2. High pressure pressure gauge 1 shockproof oil pressure gauge, hangzhou fuyang.
3. Case of machine box 1.
4. A stainless steel tank for the tank.
5. High-pressure discharge valve 1 high-pressure valve.
6. Pressure sensor 1 is used to collect pressure and import SSI.
7. Digital display table 1 is used to display pressure, which can be accurate digital reading.
8. Computer 1 lenovo commercial computer (19 "LCD screen)
9. Data acquisition software 1 set of SUPY1.0.
10. Proportional valve 1 control pressure and boost speed, OMEGA.
