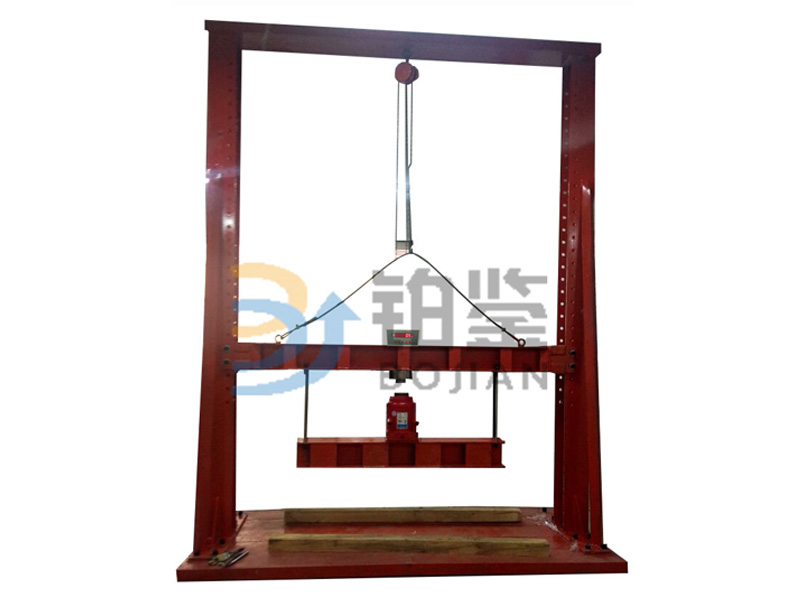

BJHPW - 500 kn concrete drainage pipe pressure test device is according to national standard "concrete and reinforced concrete drain" (GB/T 11836-99), the concrete and reinforced concrete drain test method (GB/T 16752-2010) and developed, using three compression mode, mainly is suitable for the concrete and reinforced concrete drain pipe of the external pressure test.

Concrete and reinforced concrete drain pipe (GB/T 11836-99)

Test methods for concrete and reinforced concrete drain pipes (GB/T 16752-2010)

1. The beam adopts electric screw lifting (or oil cylinder lifting) to facilitate the test of different diameter drainage pipes (1000-2600mm).

2. The lower support beams are divided into sections to facilitate the test of different length drains.

3. Concrete pouring shall be adopted on the base of the machine base (by the demander to solve the construction plan by itself), and the ground level shall be arranged to facilitate the placement of all kinds of oral drain pipes.

4. Loading with oil cylinder, stable loading and quick recovery of test space.

5. Meet the loading speed specified by the national standard and the time requirement for maintaining pressure control at each level, and the control load level can be specified by the client in any programming.

6. The force value is shown directly with KN value, and the calculation of force value is relieved.

7. The software has the function of peak maintenance, automatic storage of data and printing of report editing.

8. The report can save and print the test curve and force value at the same time, so that the test process can be reproduced accurately.

9. The trip of the beam and the piston shall be protected to ensure the safety of the test process.

10. High rigid frame design reduces the interference factor to the test results.

11. The control cabinet adopts the universal wheel activity type, so that the test personnel can operate the test from different parts and observe the cracks.

12. According to the data, the work can be used in the table, which is used for the purpose of making use of the table.

Flexible and easy to learn features, easy to print test curve and test value;

13. The software is equipped with a powerful value automatic clearing system, which eliminates the factors such as the inconsistency between human and zero error.

14. The area, height and ambient temperature of each test group can be changed or filled according to actual conditions.

1. Loading pressure: 500KN.

2. Cylinder stroke: 150mm.

3. Can be used as pipe diameter: 2000 mm Φ

4. Loading mode: manual pump.

5. Display method of force value of external pressure test device of concrete drain pipe: digital display.

6. External pressure test device: precision value plus or minus 1% or less (grade better than Ⅰ)

7. The force value is displayed directly with KN value, and the force value is not calculated.

8. The machine base is concreted with the ground level to facilitate the placement of various types of mouth drains.

9. Test force display method: digital display and peak maintenance.

10. Hardwood support rounded corners: national standard requirements.

11. Hardwood support spacing: adjustable.
