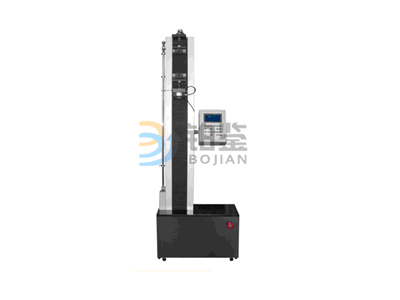

It is driven by the integrated structure such as precision motor, speed control system and synchronous belt deceleration mechanism, and the test load is carried out after the deceleration.The electrical part consists of load measuring system and deformation measurement system.All control parameters and measurement results can be displayed in real time on large LCD, and have the function of overload protection.

The film tensile testing machine is suitable for use in rubber and rubber products, wire and cable with plastic (PVC), nonwoven cloth, plastic film, products, paper, cardboard, PVC pipes, woven bag, packing tape, adhesive tape, adhesive products such as mechanical properties such as tensile, tear, elongation, peel test;Able to save test data and results, with curve display, query, printing and other functions.

GB/T 8946-98 "plastic woven bag"

GB/T 8947-98 "composite plastic woven bag"

GB/T 1039 general principles for testing methods of mechanical properties of plastics.

GB/T 8088-98 "test method for soft composite plastic peel".

Automatic calibration: the system can automatically realize the calibration of indication accuracy.

The stress value corresponding to the displacement can be obtained automatically.

Easy to operate: menu operation of Chinese character is intuitive and clear.

Complete functions: film tensile testing machine can carry out tests such as tensile, elongation, tear, peel and so on.

Dynamic curve: dynamic curve can be displayed during the test.

Automatic display: during the whole test process, the test force, peak value and test state are displayed in real time.

Automatic control: the test parameter is input, and it can finish the test process automatically.

Breaking judgement: after the specimen is fractured, the moving beam stops moving automatically.

Limit protection: it has mechanical and program controlled two level limit protection function.

Model: BJDL-S

The maximum measurable force is 50N 100N 200N 500N 1000N 2000N 5000N.

Force sensor: domestic / imported high-precision force sensor.

Accuracy grade: superior to level 1

Test force test range: 1.0%~100%FS

The precision of the force value of the film tension test machine is better than that of 1%

The resolution of the force value: 1/200000

Displacement indication error: less than 0.5% of the indication

Displacement resolution: 0.05um

Deformation indication error: less than 0.5% of the indication value

Test speed range: 1 ~ 500mm/min

Transmission mode of membrane tensile testing machine: stepper motor / servo motor drive screw drive.

Control system: domestic drive / import driver, microcomputer control box.

Test stroke (no fixture): 1000mm (optional)

Volume (W*D*H): 560x320x1800mm

Power and power: AC 220V + 10% 50Hz, 0.75kw

Weight: 150KG

Automatic stop device mechanical and program control
