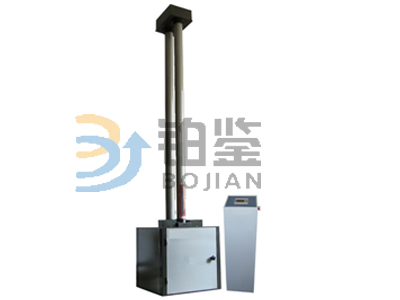

Product name：Drop hammer impact testing machine.
Product model：BJLC-2
Product range：300J
Immediate consultation
Online Message
JB/T 9389-2008 "technical conditions of the drop hammer impact test machine for non-metallic materials"
GB/T 6112-1985 test method for impact resistance of thermoplastic pipes and pipes
GB/T 11548-1989 test method for impact resistance of rigid plastic sheet
GB/T 14152-2001 test method for external impact resistance of thermoplastic tubes
GB/T 5836.1-2006 "construction drainage hard polyvinyl chloride (PV-U) pipe"
GB/T 10002.1-2006 "water supply hard polyvinyl chloride (PV-U) pipe"
GB/T 10002.2-2003 "water supply hard polyvinyl chloride (PV-U) pipe fitting"
GB/T 13664-2006: pv-u tube for low-pressure water supply irrigation
GB/T 16800-2008 "drainage core layer foam hard polyvinyl chloride (PV-U) pipe"
GB/T 184777-2007 "the first part of the double-wall corrugated pipe system in the wall pipe system of pvp-u"
QB/T 1929-2006 "buried water supply polypropylene (PP) pipe"
JB/T 5125-2007 "agricultural hard polyvinyl chloride pipes"
The control part of the pipe falling hammer test machine adopts PLC control, which can set the impact height, automatic grasp hammer, automatic zero, automatic lifting and anti-impact function.
Maximum impact energy: 300J.
Impact height: 0-2000mm(special customized)
Radius of curvature of hammer head: SR5, SR10, SR30;D25, d90
Weight of hammer: 0.25Kg-16Kg.
Sample size: tube, 16-, 450mm(specially made)
Height positioning error: plus or minus 2mm.
Display resolution: 1mm.
Secondary impact capture rate: 100%.
