1, style: microcomputer control, door structure.

2. Maximum test force: 20KN

4. The accuracy of the test force: + 1%

5. Displacement resolution: 0.01mm;

6. The accuracy of displacement measurement: 1%;

7, compressed space: 1000*1000*1000 (customizable).

9, displacement speed control range: 1mm/min to 300mm/min, adjustable.

10. The precision of the displacement speed control: 1%;

11. Test machine level: Level 1

12, appearance: should meet the requirements of GB/T2611.

14, complete set: meet the standard requirements.

15, protection function: the tester has overload protection function.

16. Power supply: 220V, 50Hz

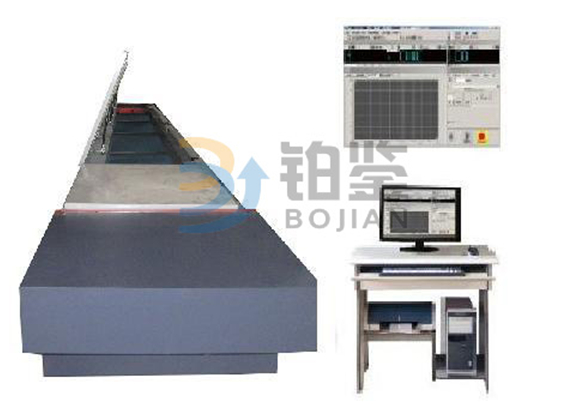

The testing machine computer control electro-hydraulic servo horizontal tensile testing machine adopts frame structure, single out the double effect of servo cylinder test force, force load sensor, according to the sample specification length can be adjusted step stretch space, computer control test force loading mode, automatic processing according to the requirement of the test method of test data, the machine for mining industry product tensile test, used for steel wire rope, chain, lifting belt, belts and other products of the tensile load, destructive test, for convenient operation and slow loading smoothly, the body carrying capacity is strong, etc. Independent development of full digital amplifier, used to implement the system of three closed loop control.

1) maximum test force: 500KN.

2) measuring range: 50-500kn;

3) accuracy of test force:

4) test space (excluding piston stroke) : 5000mm;

5) horizontal tensile testing machine servo cylinder stroke: 1600mm;

6) displacement measurement range: within the range of full range.

7) measuring force method: load sensor measurement force;

8) this microcomputer controlled electro hydraulic servo horizontal tension test machine has the function of breaking the protection, automatically seeking the tensile strength of the style, the maximum breaking force and other indicators.

9) control test mode: computer automatic control test process, computer screen display test force and test curve, automatic processing test data according to the requirements of test method;

10) various test curves can be displayed: force - displacement, force - time, force - deformation, stress - strain, etc.

11) the console is separated from the host, which has a safe distance, and the host shall have security measures.

12) device appearance length dimension: about 11m.
