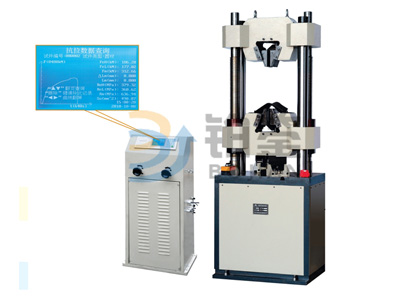

BJWE-S digital display hydraulic universal testing machine digital display LCD display, micro printer printing test data.It is applicable to test the tensile test, compression test, bending and shear of metal and non-metallic materials in 1000KN force value.The machine controls the hydraulic loading manually, and the motor drives the sprocket and the drive screw to adjust the test space.The oil cylinder is used for lower, lower and lighter weight, especially for the engineering construction department.

GB/ t3159-2008 hydraulic universal testing machine

GB/T 228.1-2010 metal material tensile test part 1: test method at room temperature

GB/ t7314-2005 metal materials room temperature compression test method

GB/ t232-2010 metal materials bending test method

GB/T 16826-2008 electric hydraulic servo universal testing machine

GB/T 2611-2007 test machine general technical requirements

JJG 1063-2010 electrohydraulic servo universal testing machine

JB/ t6146-2007 "technical conditions of extender"

JB/T 6147-2007 "testing machine packaging, packing marks, storage and transportation technical requirements"

This digital display type hydraulic universal testing machine use hydraulic loading, digital display control instrument according to the test result, convenient operation, accurate and reliable test readings used in all kinds of metal material tensile, compression, bending and shear test, increase the simple accessories, can complete chain of belt, steel wire, welding electrode, tile and component of a variety of performance test.The digital display hydraulic universal testing machine adopts the oil cylinder lower, the height is low, the weight is light, especially applies to the engineering construction department.

1. It is equipped with plunger type high pressure oil pump in the shell of the dynamometer, which is driven by the motor, and the operation is smooth and the sound is normal.The stretching space is located above the host, and the compression and bending test space is located between the beam and the workbench under the host.

2. The lower beam shall adopt the motor driven by the reducer, the chain drive mechanism and the screw side transmission to realize the adjustment of stretching and compression space.

3. The hydraulic system of this hydraulic universal testing machine is mainly controlled by the oil valve handle outside the dynamometer, and the operation is convenient and safe.

4. The speed display function of the machine, the control part and the indication part are highly appropriate, facilitating the operation and observation of the experimenter.

5. The machine is reserved with Internet and upgrade interface, which can be upgraded to servo mode according to users' needs, which is an ideal product for updating and replacing.
