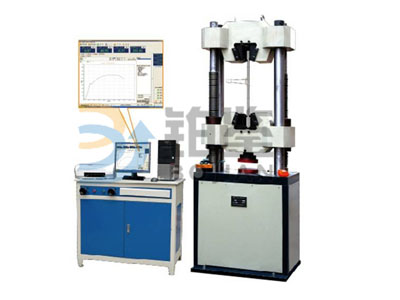

Product name：Steel tensile testing machine
Product model：
Product range：
Immediate consultation
Online Message
Tensile testing machine mainly tests the tensile properties of steel bars and other performance tests.The pillar structure, the use of hydraulic load, the computer shows the test result, convenient operation, accurate and reliable test readings of general steel and other metal materials can do tensile, compression, bending and shear test, can also do general materials, such as plastic, cement and concrete compression and bending test.
GB/ t3159-2008 hydraulic universal testing machine
GB/ t228-2002 metal materials room temperature tensile test method
GB/T 7314-2005 metal materials room temperature compression test method
GB/T 232-2010 metal materials bending test method
1. Maximum test force kN:600
2, the measurement range of test force is kN:2%-100%FS (12-600KN).
Relative error value is less than or equal to 3, the test force: value plus or minus 1%
4. Experimental resolution: 0.01kN
5. Displacement measurement resolution mm:0.01
6. The accuracy of deformation measurement mm:0.01
7, maximum tensile test space mm:600
8. Maximum compression space mm:550
9. Piston stroke of steel tension test machine mm:200
10. The clamping diameter of the round sample jaw is mm: 13- diameter, and 40
11. The clamping thickness of flat sample tongs mm:0-30
12, the maximum clamping width of flat sample mm:75
13. Pressure plate size mm:160*160
14, the maximum distance between two points in the bending test mm:350
15. The distance of the two pillar in the stretch space mm:465
16, bending and rolling width mm:140
17, bending and rolling diameter mm: 30
18, the maximum bending mm:150 of the steel bar tensile tester.
19. The diameter of the shear specimen mm:10
20, the maximum moving speed of the piston mm/min: about 80
21. The power of the oil pump motor kw:1.1
22. The power of the motor kw:0.75 on the top and bottom of the beam
23, clamping mode: automatic / manual tightening
24, the size of the steel bar tensile testing machine is mm: about 800 x 580 * 2100.
25, the size of the measuring cabinet is mm: About 1120 x 700 * 950.
26. The weight of the machine is kg: about 2300
